Leather base fabric production line

-Needle punching leather base fabric making machine

√ Professional design

√ High quality

√ High production

√ Quality service

APPLICATION

Mainly used as base material for synthetic leather: after being impregnated with latex, and then coated and finished, it becomes synthetic leather. The synthetic leather produced with this material has unique advantages: for example: easy to process (including cutting, sewing, molding, bonding, printing, etc.), isotropic, not easy to break, resistant to dirt, water, oil, and chemical Function, light weight, good uniformity and resilience.

Synthetic leather based on non-woven fabrics can be divided into the following categories according to their uses:

1. Shoe leather: lining leather and upper leather for shoes

2. Imitation leather: Imitation sheepskin and imitation cow leather Mainly used for clothing, luggage and shoes.

3. Imitation suede, etc.

Product Detiles

FEATURES

1.The frame is welded by high-quality steel, and the structure is stable.

2.Safety protection:

(1) All transmission parts are protected by protective covers.

(2) The electrical part is provided with overload protection, overcurrent protection, short circuit protection and emergency stop button.

(3) Warning signs are required for necessary parts.

SPECIFICATION:

Model	CYLPG-1800	CYLPG-2800	CYLPG3600	CYLPG-5000
Working width	1800mm	2800mm	3600mm	5000mm
Capacity	≤150kg/h	≤200kg/h	≤300kg/h	≤350kg/h
Power	About 100-250kw
The Quantity of needle punching machines	One,two,three,four,five,six,seven

DETAILED DESCRIPTION

Process flow:

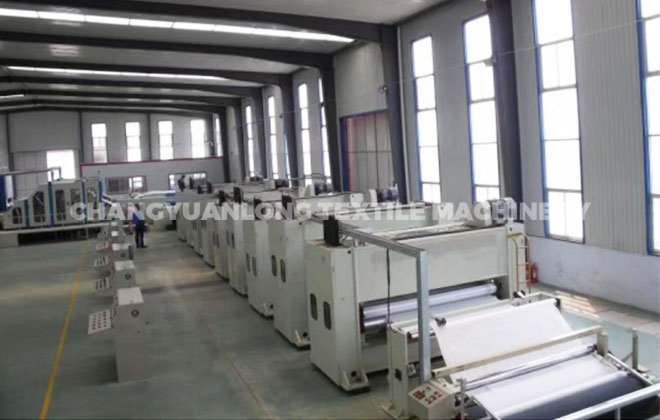

Bale Opener - Opening Machine -Vibration Feeder -Carding Machine -Cross Lapper - Needle punching Machine -Calender Machine - Winder&Cutter

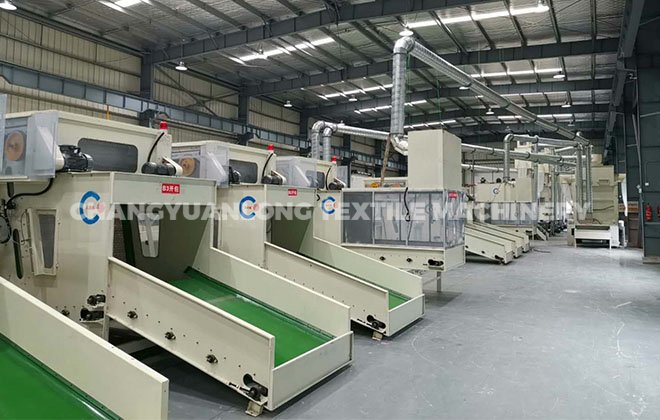

1. CYKB-bale opener: Open all kinds of baling fibers, weigh them by electronic scale according to the proportion, and spread them evenly on the cotton curtain. Various fibers are put into the horizontal conveying curtain, fed through the calender roll and counter roll, and opened by the high-speed beater and sent to the next process by the cotton conveying fan.

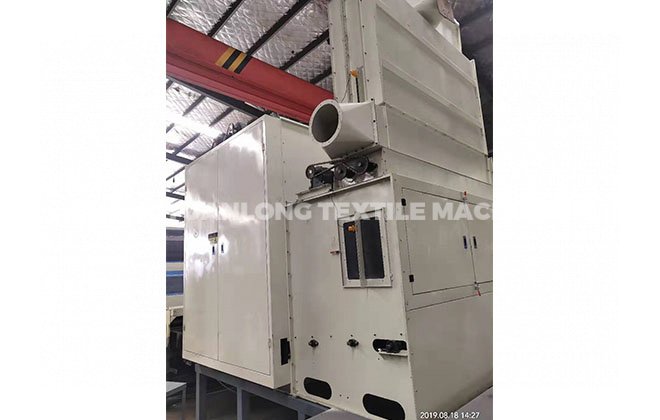

2. CYLDC-Big cabin blender：It is suitable for chemical fiber, raw cotton and cotton chemical fiber of various grades which have been initially opened, and is fully stored and mixed, and then evenly grabbed and fed by the oblique nail curtain to the flat curtain of the opening machine; the machine is controlled by two groups of photoelectric.

3 CYLKS-opening machine: The company develops special alloy card clothing for opening. The fan conveys it. The feeding is wood curtain or leather curtain. The feeding is controlled by photoelectricity on the cotton feeder. The feeding uses two groove rollers. There are two spring-loaded. The opening roller performs dynamic and static balance processing, with a conveying air duct, and is fully closed to reduce the number of cleanings.

4. CYLMX-Vibration Feeder: The open fiber is further loosely mixed and processed into a uniform quilted cotton for the next process. Volumetric quantitative feeding, photoelectric control, convenient adjustment, accurate and uniform cotton feed.

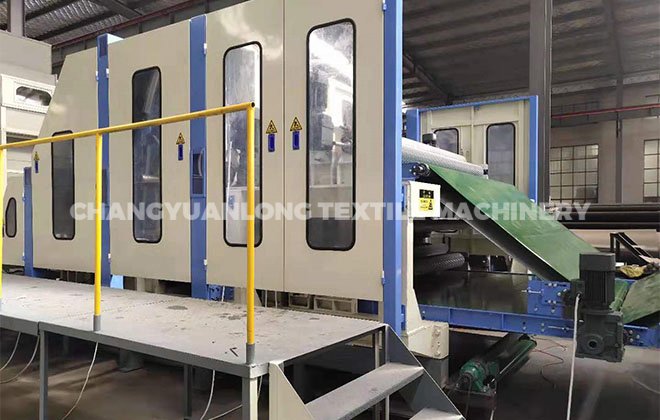

5. CYLSL-Carding machine: This machine is double cylinder, double doffer, four messy, roller stripping. All the rollers of the machine have been quenched and tempered, and then processed precisely. The wall board is made of cast iron, and the card clothing is made of domestic high-quality card clothing, and is equipped with a suction device, which can reduce the number of cleanings and also has a walking table. It has the advantages of strong carding ability and high output.

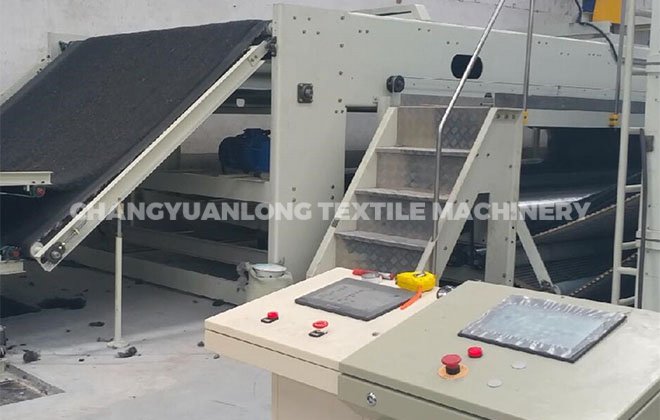

6. CYLPW-cross lapper: The frame is made by bending 6mm steel plate, and a compensation motor is added between the laying curtains to reduce the draft of the web. Frequency conversion control for reciprocating commutation, small impact force, can automatically buffer balanced commutation, and is equipped with multi-stage speed control. The bottom curtain can be adjusted up and down, so that the cotton net can be evenly laid on the bottom curtain according to the required unit weight for the next process. The slant curtains, flat curtains and cart flat curtains are made of high-quality leather curtains, and the bottom curtains and ring curtains are wooden curtains.

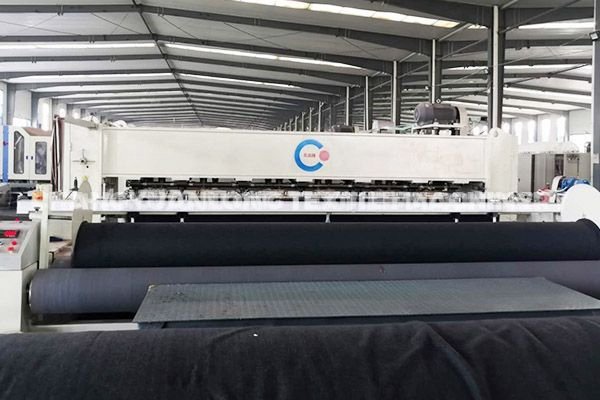

7. CYLZC-Needle Punching Machine:This machine adopts new steel structure. The moving beam is made of aluminum alloy. The needle bed beam and main shaft are qualitatively treated by tempering and tempering. The deburring board and needle bed beam are raised and lowered by the worm gear box. The plate is controlled by air pressure, computer numerically controlled needles, chrome plated in and out rollers, cotton strippers and cotton pads, and the connecting rod is made of ductile cast iron. The guide shaft is forged with 45 # steel and finished by heat treatment.

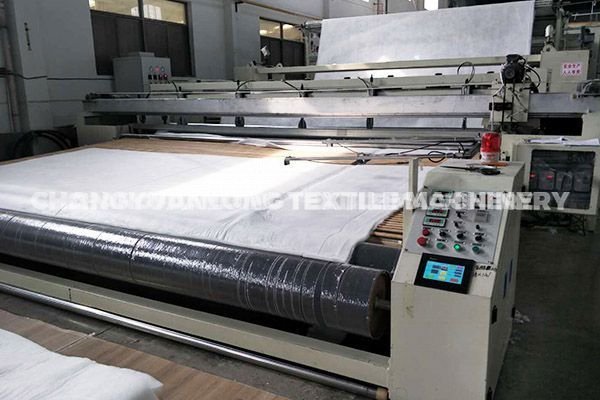

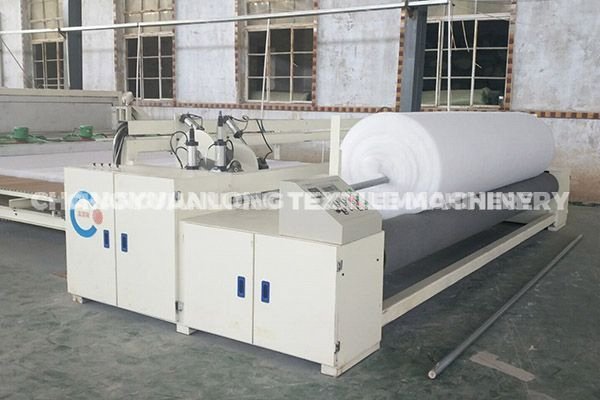

8. CYLCQ-Winder&cutter: This machine is a steel plate structure, the frame is made of a whole piece of steel plate welding, integrating transmission and operating system. Three longitudinal hard cutting knives are used for cutting, and one horizontal flying knife is controlled by the electronic meter counter. The structure is simple, beautiful and generous.
