FEATURES

1.The frame is welded by high-quality steel, and the structure is stable.

2.Safety protection:

(1) All transmission parts are protected by protective covers.

(2) The electrical part is provided with overload protection, overcurrent protection, short circuit protection and emergency stop button.

(3) Warning signs are required for necessary parts.



SPECIFICATION:

Model

CYLTZ-1500

CYLTZ-2200

CYLTZ-3000

CYLTZ-3800

CYLTZ-4200

Working width

1500mm

2200mm

3000mm

3800mm

4200mm

Capacity

≤60kg/h

≤100kg/h

≤120kg/h

≤200kg/h

≤250kg/h

Power

About 150-300kw

The Quantity of  needle punching  machines

One,two,three

Speed of the needle punching  machine

Middle or High


DETAILED DESCRIPTION


1.CYLWR- Feeder: For fiber feeding.

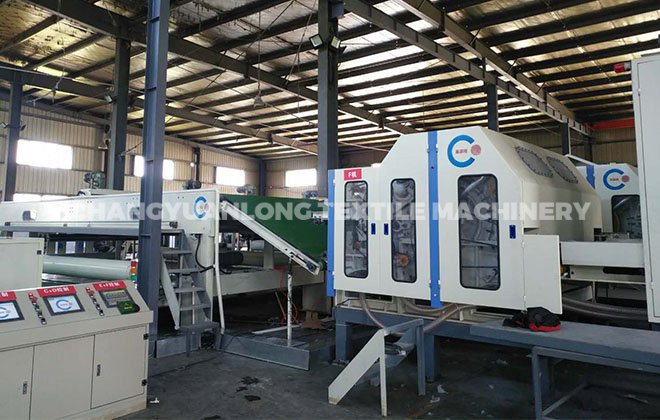

2. CYLSL-carding machine: The wall board is made of cast iron, and the card clothing is made of domestic high-quality card clothing, and is equipped with a suction device, which can reduce the number of cleanings and also has a walking table. It has the advantages of strong carding ability and high output.

3. CYLPW-cross lapper: The frame is made by bending 6mm steel plate, and a compensation motor is added between the laying curtains to reduce the draft of the web. Frequency conversion control for reciprocating commutation, small impact force, can automatically buffer balanced commutation, and is equipped with multi-stage speed control. The bottom curtain can be adjusted up and down, so that the cotton net can be evenly laid on the bottom curtain according to the required unit weight for the next process. The slant curtains, flat curtains and cart flat curtains are made of high-quality leather curtains, and the bottom curtains and ring curtains are wooden curtains.

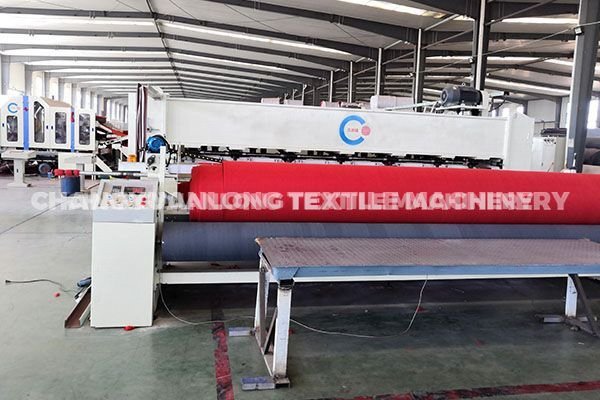

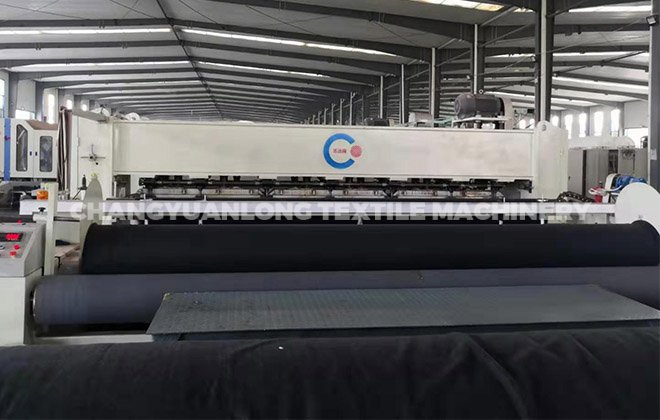

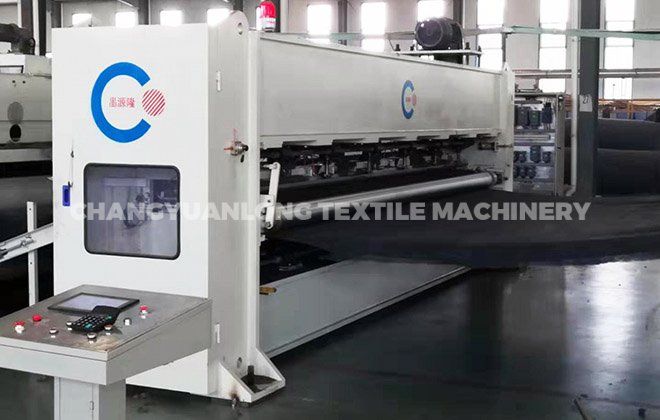

4. CYLHF-TCYLZC-Needle Punching Machine:This machine adopts new steel structure. The moving beam is made of aluminum alloy. The needle bed beam and main shaft are qualitatively treated by tempering and tempering.

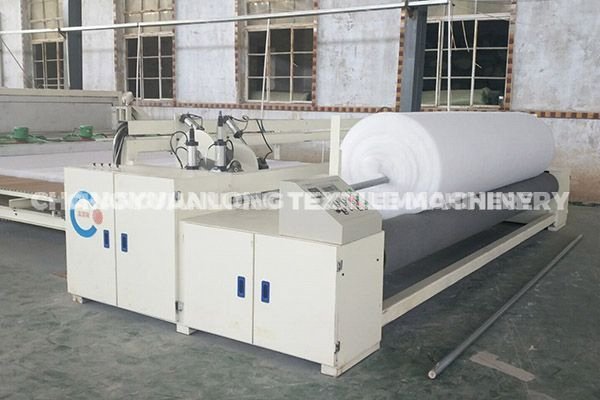

5. CYLCQ-Winder&cutter: This machine is a steel plate structure, the frame is made of a whole piece of steel plate welding, integrating transmission and operating system. Three longitudinal hard cutting knives are used for cutting, and one horizontal flying knife is controlled by the electronic meter counter. The structure is simple, beautiful and generous.
